SPL, SPL-G & SPLF-G Series Stainless Steel Push-in Fittings

Flexible 90° Tube Routing for Compact Pneumatic Systems

The SPL, SPL-G and SPLF-G stainless steel push-in fittings are engineered for pneumatic installations where conventional straight connections cannot provide sufficient flexibility. Their 90° elbow structures redirect tubing efficiently while the rotatable body allows the tube direction to be adjusted according to the available installation space.

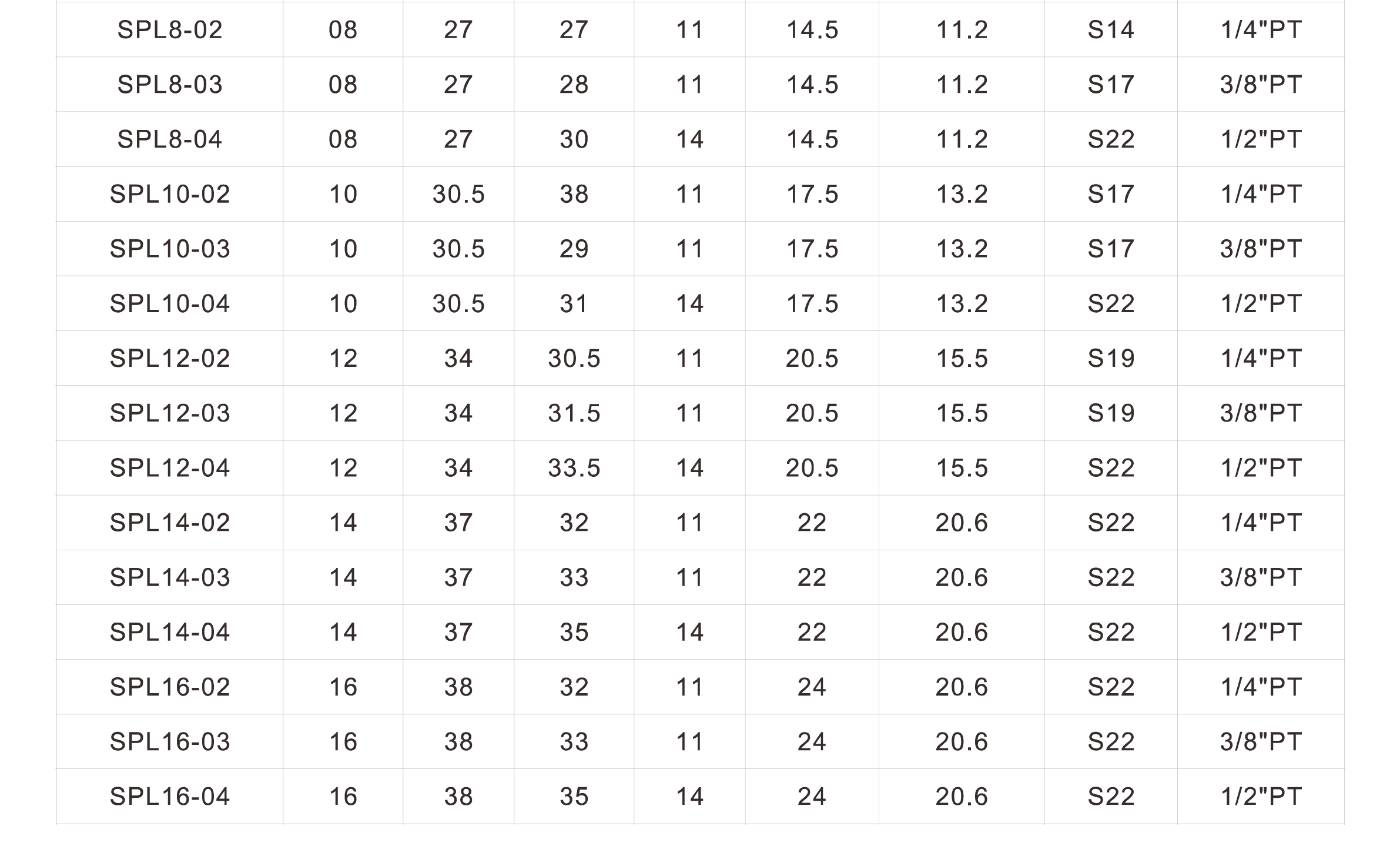

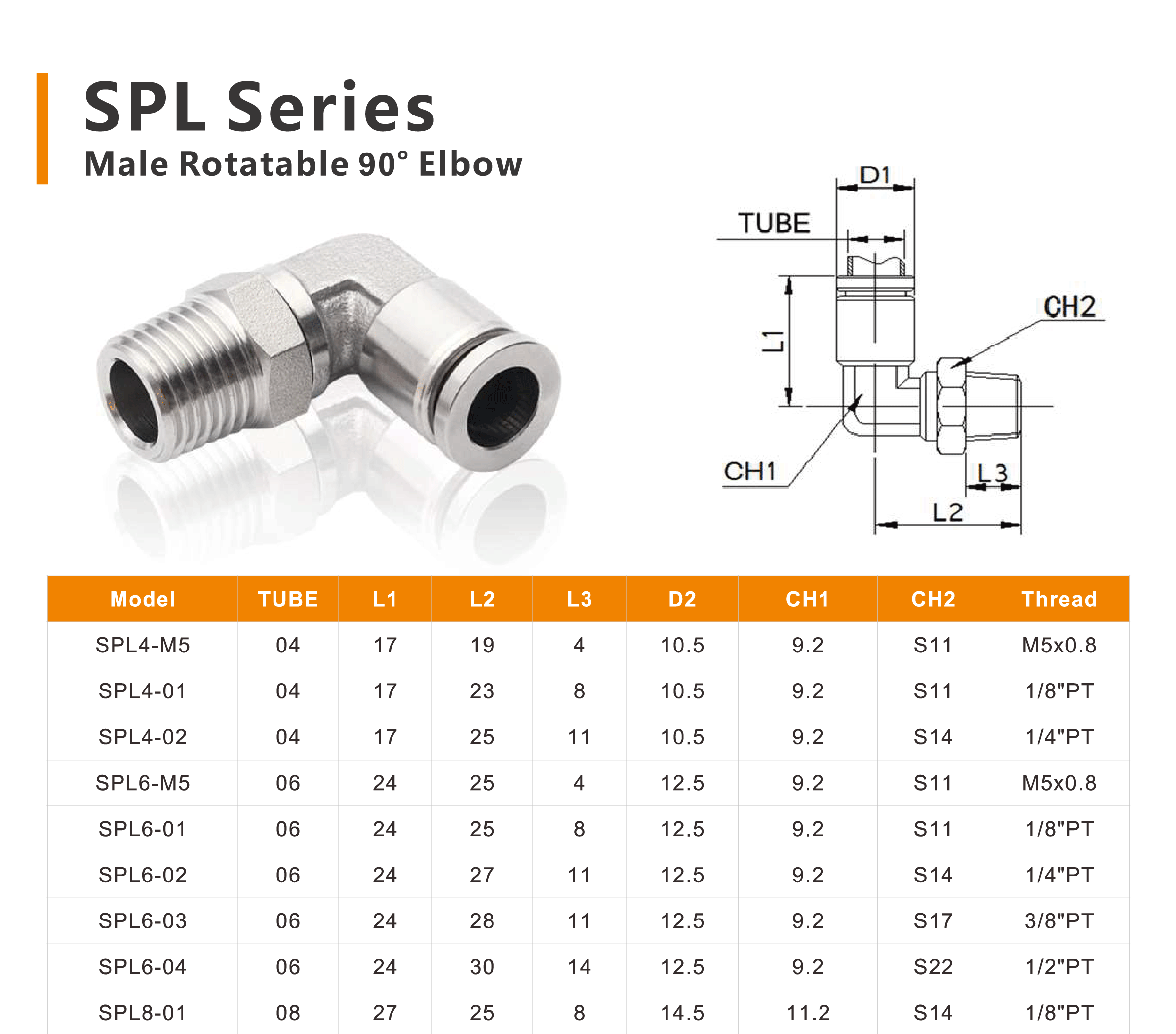

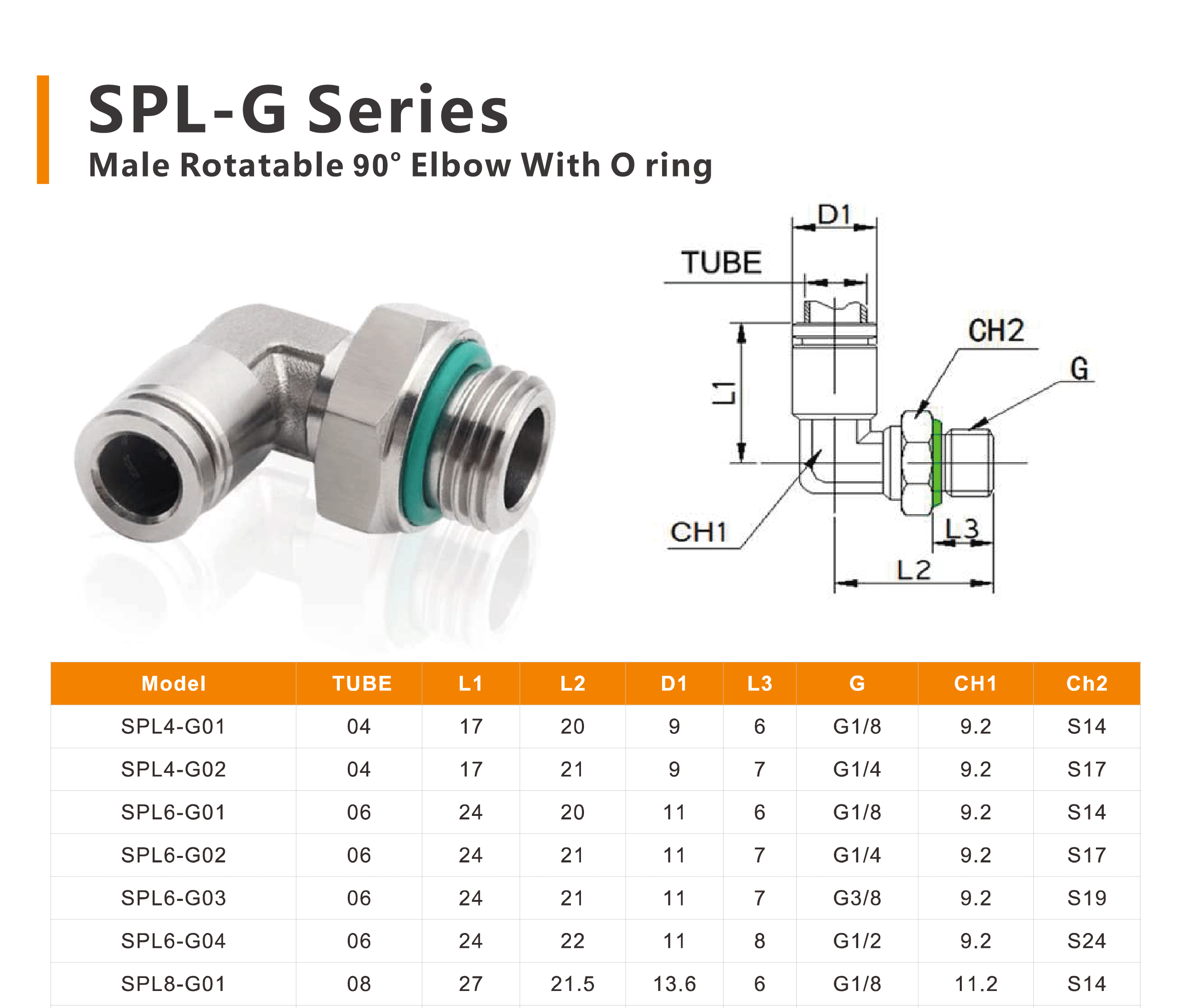

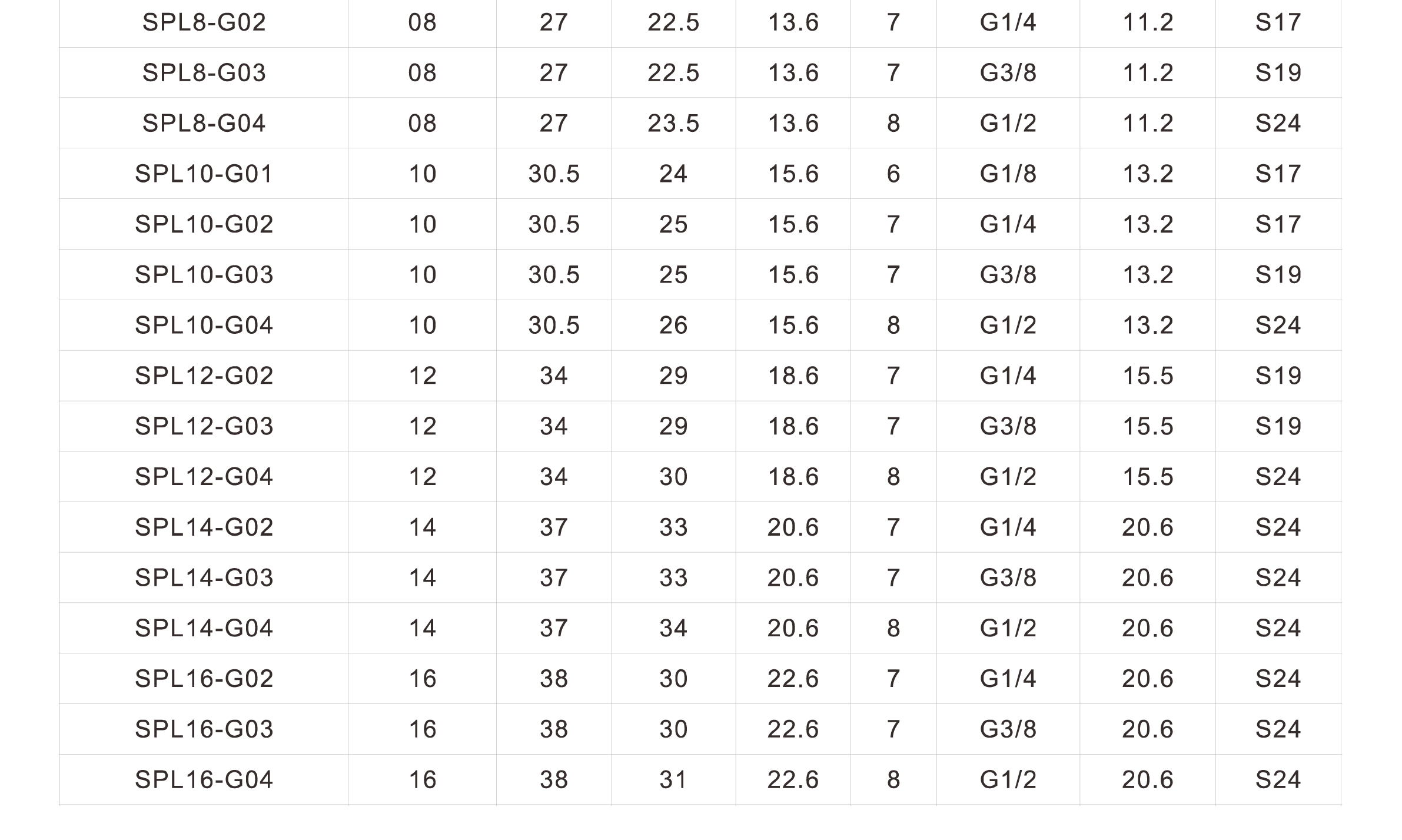

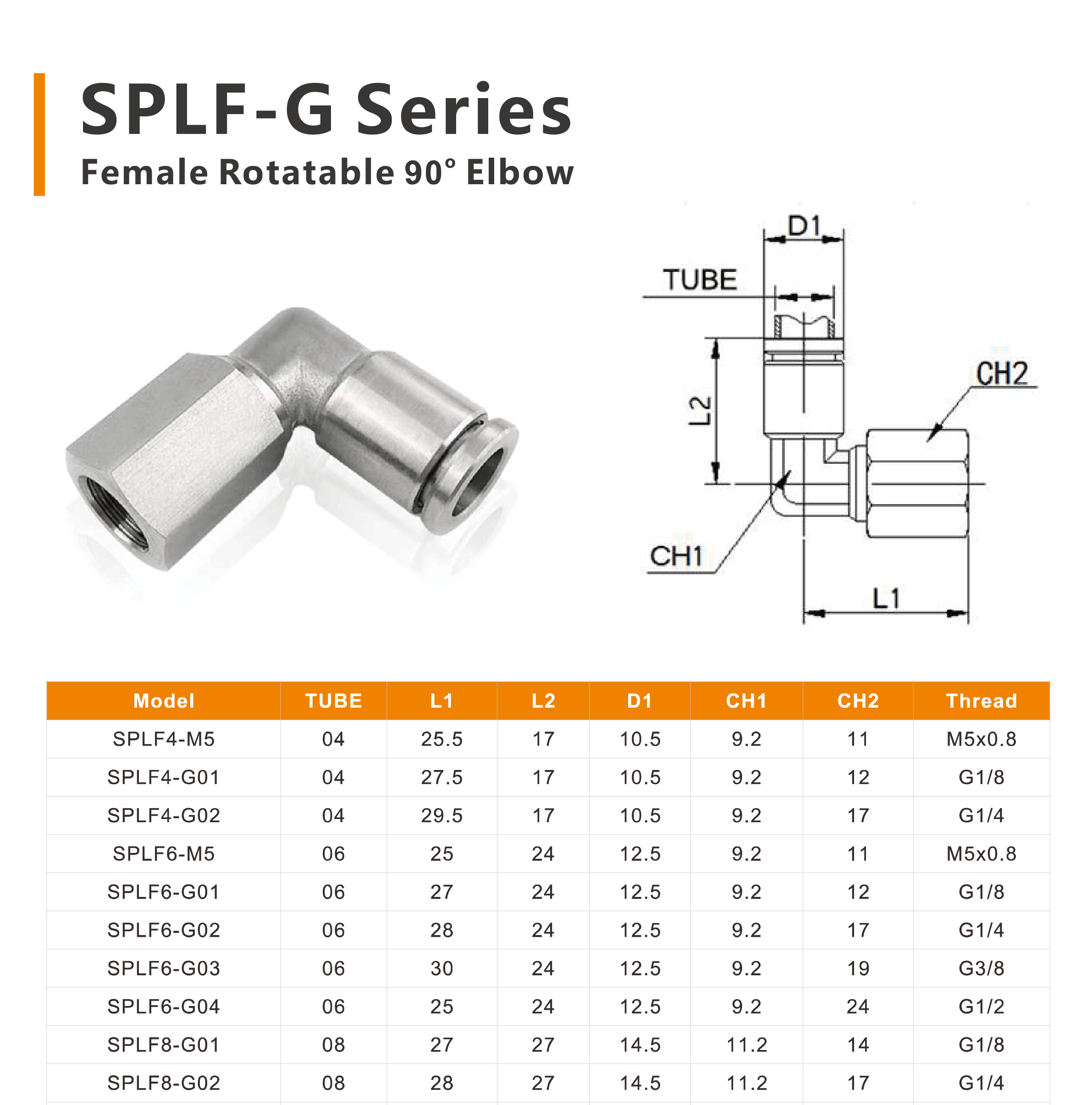

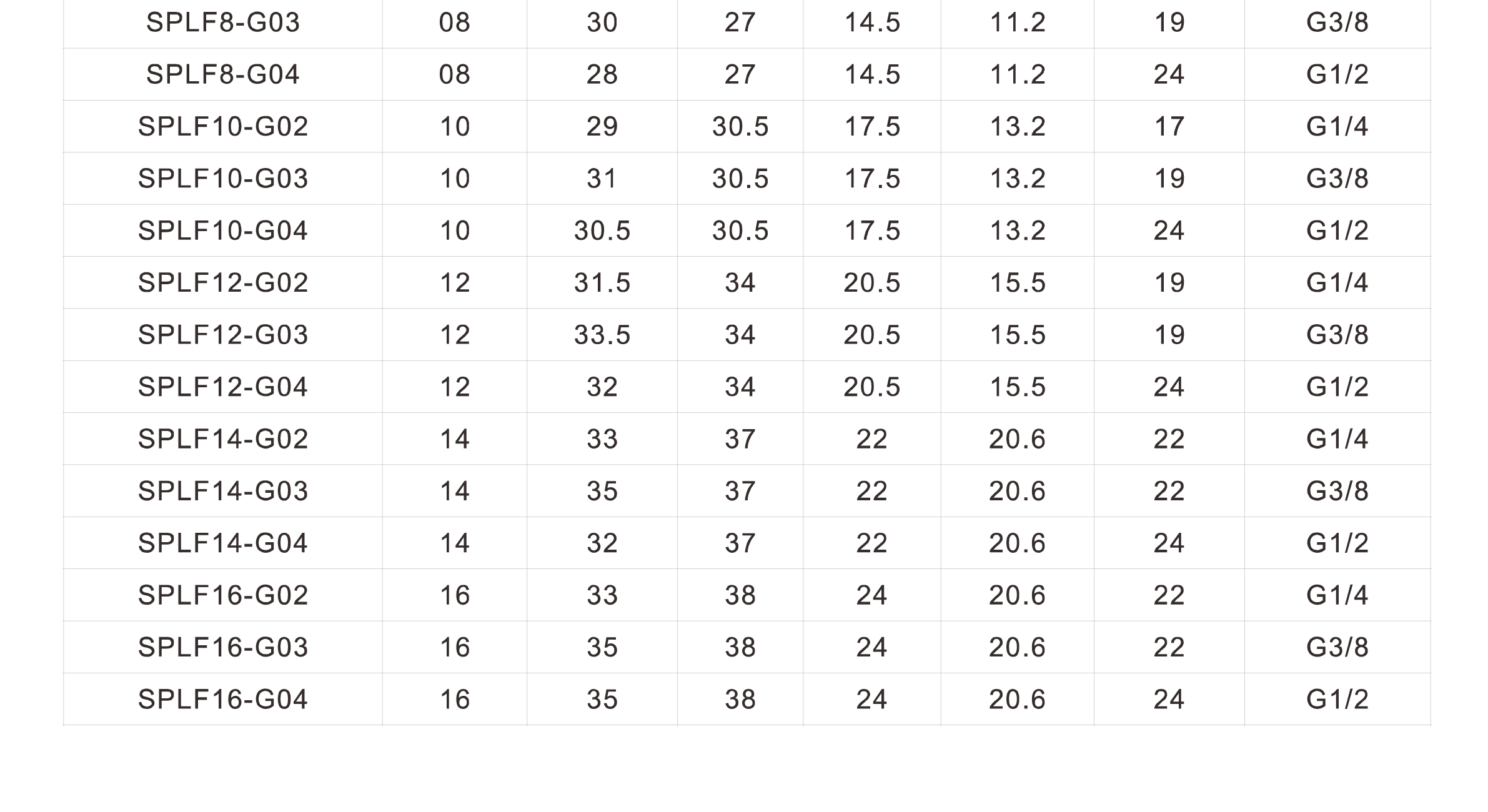

The three configurations provide different connection solutions. SPL Series uses a male rotatable 90° elbow for direct connection to female threaded ports. SPL-G Series combines the same rotatable male elbow structure with an O-ring to enhance sealing at the threaded connection. SPLF-G Series features a female rotatable 90° elbow for applications requiring connection to male threaded components.

This configuration flexibility makes the fittings particularly useful in compact pneumatic equipment where tubing arrangement and accessibility are important.

Corrosion-Resistant Construction and Controlled Manufacturing

Made from stainless steel materials including 303, 304, 316, and 316L, these pneumatic elbow fittings are suitable for applications exposed to moisture, cleaning processes, or corrosive operating conditions. Material selection can be matched to the requirements of different environments and equipment.

Each fitting is manufactured with controlled dimensional tolerances. Most components are produced using automated equipment, while critical processes are checked by specialized inspectors to maintain consistent quality.

● Key characteristics include:

• 303, 304, 316, and 316L stainless steel options.

• BSP, PT, NPT, and metric thread configurations.

• OEM and ODM customization supported.

• CAD drawings can be provided according to customer requirements.

• Ultrasonic inspection and cleaning followed by drying before shipment.

• ISO9001, CE, and FDA certifications.

Quick Installation and Rotatable Connection Design

The push-in tube connection allows pneumatic tubing to be installed quickly by inserting the tube directly into the fitting. The rotatable elbow structure can then be positioned to achieve a cleaner tube layout and reduce unnecessary bending or interference between adjacent components.

For installations using the SPL-G Series, the integrated O-ring provides an additional sealing element at the threaded connection. The SPLF-G female version offers an alternative connection arrangement when the equipment side uses a male thread.

These stainless steel push-in fittings are suitable for industrial automation, pneumatic control systems, packaging machinery, food processing equipment, instrumentation, and other applications where space-efficient tube routing is required.

Applications Where Direction and Space Matter

The 90° configuration is especially useful inside control cabinets, compact machinery, robotic equipment, and pneumatic manifolds where straight fittings may require excessive tubing space. The ability to rotate the elbow helps installers position tubing more conveniently during assembly and maintenance.

With multiple thread standards, stainless steel material options, and three connection configurations, the SPL, SPL-G, and SPLF-G Series provide a flexible solution for designing reliable and space-efficient pneumatic piping systems.
